Product
MariComm Station
It serves as a key repeater for coastal long distance communication without using satellites. It provides a transmission rate of more than 1M bps in a 100km sea area, and it can be applied to various communication environments with 4 types (Deluxe / Standard / Compact / Mini).
Characteristics
| Antenna Tracking | Technology to automatically control the position and attitude of the antenna at the oscillating node (base station) |
|---|---|
| System Bridge | Analyze channel signal strength and range, automatically detect from existing channel area to next channel area when moving node, connect and switch to best channel |
| Load Balancing | Maximize communication speed by distributing data on each connection channel |
| Ad-Hoc | Acts as a base station for other nodes via hop |
Product Advantage
- Low price and performance compared to existing satellite communication → Price of existing satellite equipment 1/10 ↓, communication speed 10 times or more ↑
- Scalable to various communication fields
- Compatibility with own network and heterogeneous network connection
Product specifications
-

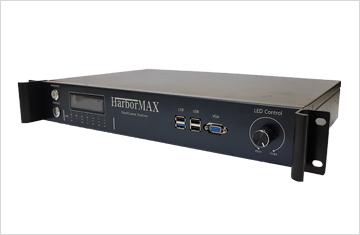

Deluxe
428(W) x 280(D) x 67(H) 4.25kg
-

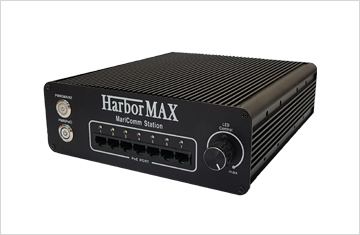

Standard
210(W) x 234(D) x 72(H) 1.83kg
-

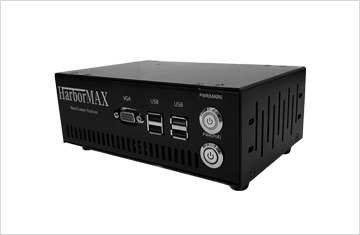

Compact
190(W) x 123(D) x 67(H) 0.94kg
| Size | Deluxe | 428(W) x 280(D) x 67(H) 4.25kg |
|---|---|---|
| Standard | 210(W) x 234(D) x 72(H) 1.83kg | |
| Compact | 190(W) x 123(D) x 67(H) 0.94kg | |
| Power | AC 220V | |
| LAN | 2 Port (100 / 1000 Ethernet) | |
| POE | 7 Port(24V) | |
| Storage | SATA 128GB | |
| OTHER | VGA, USB 2.0, USB 3.0, Web, SSH | |
